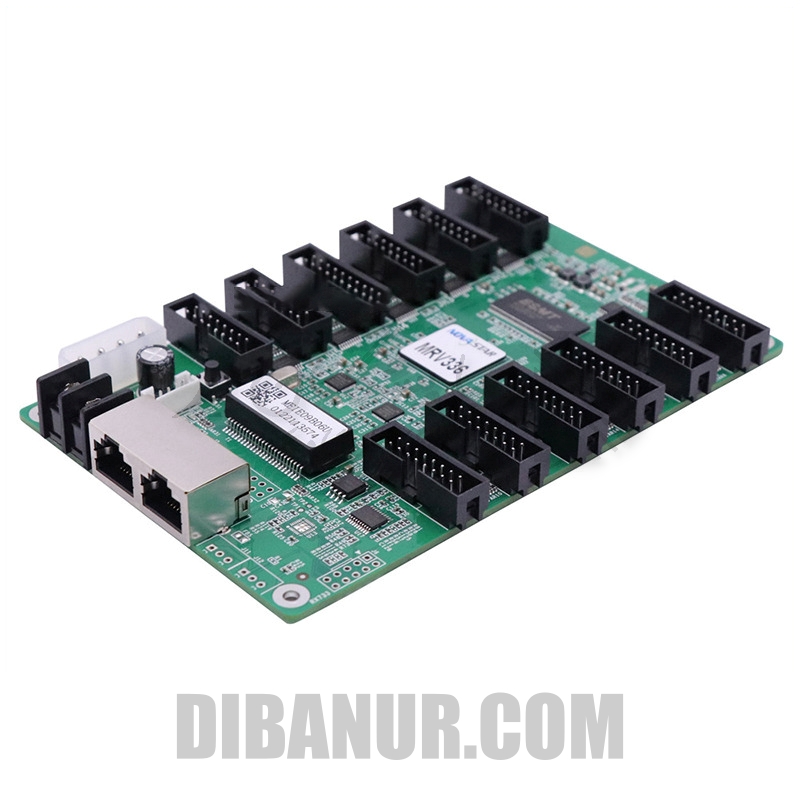

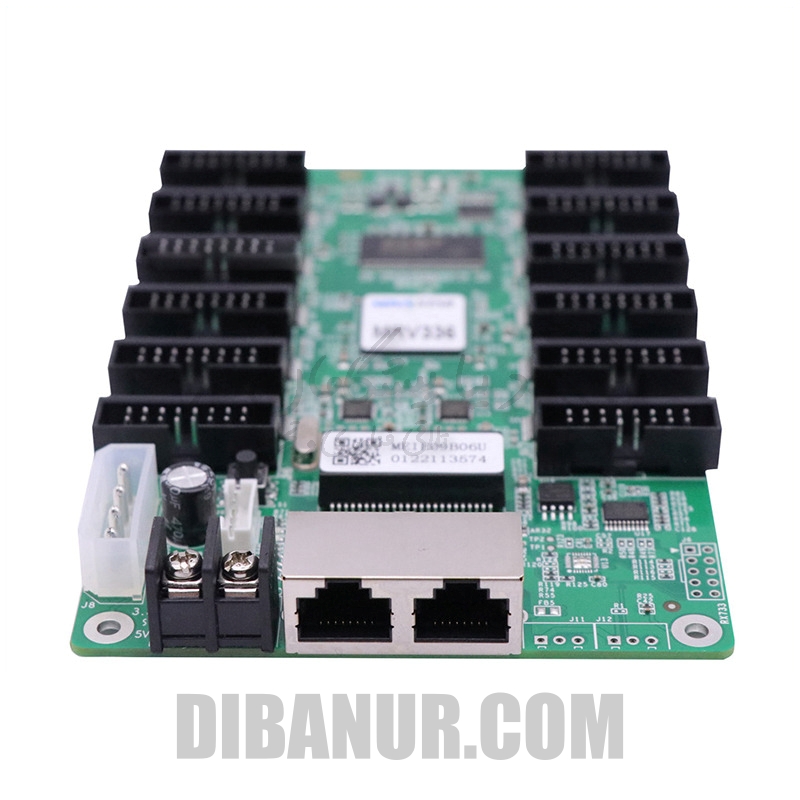

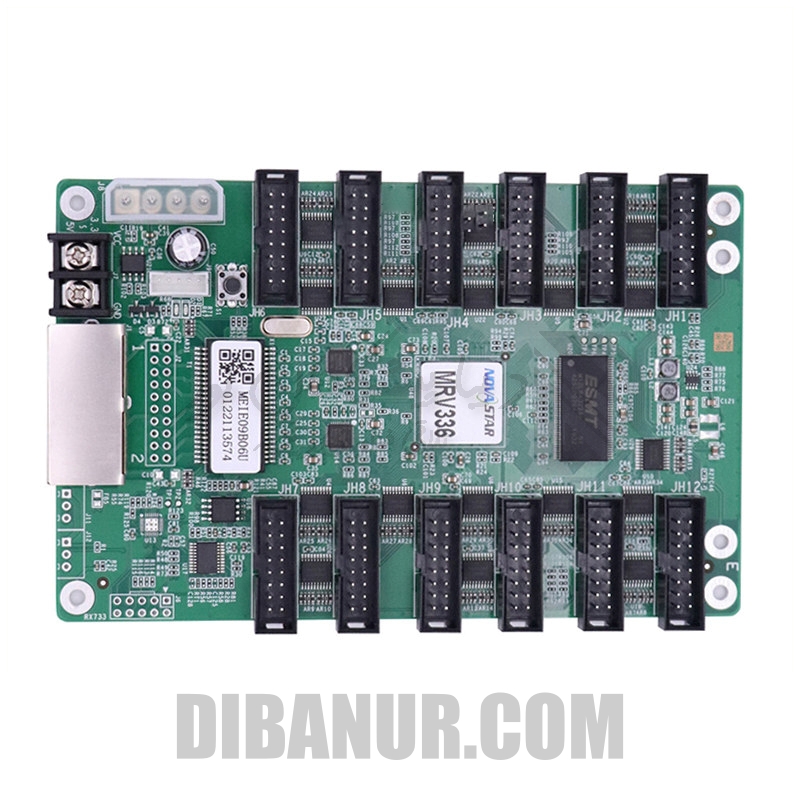

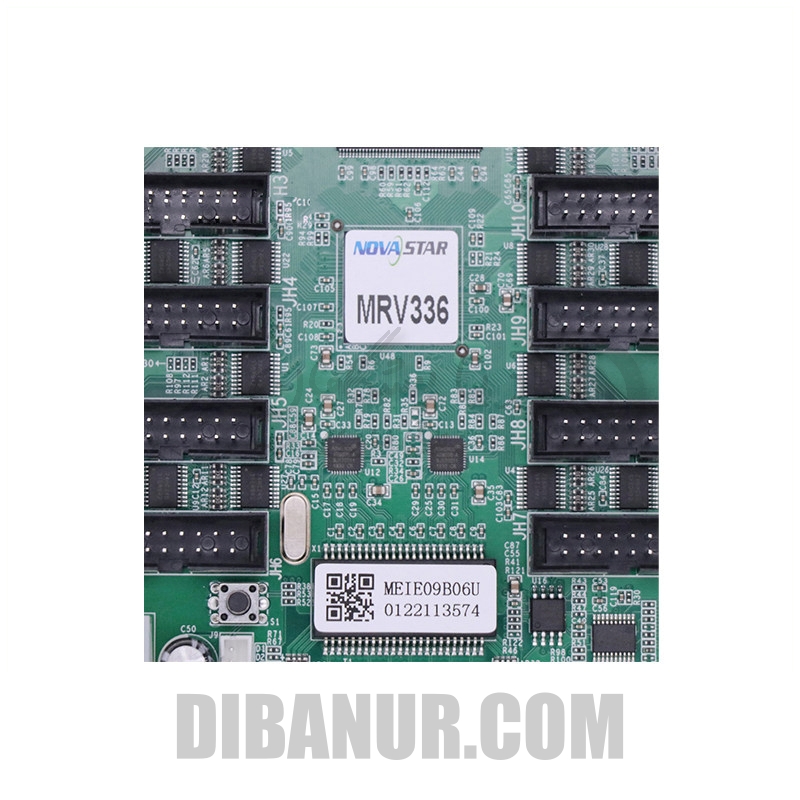

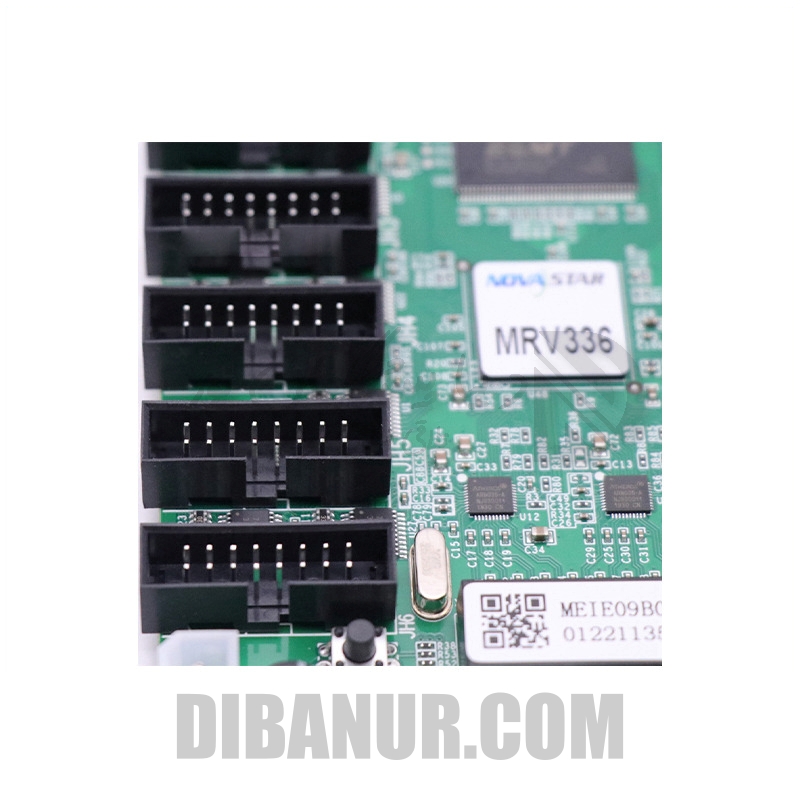

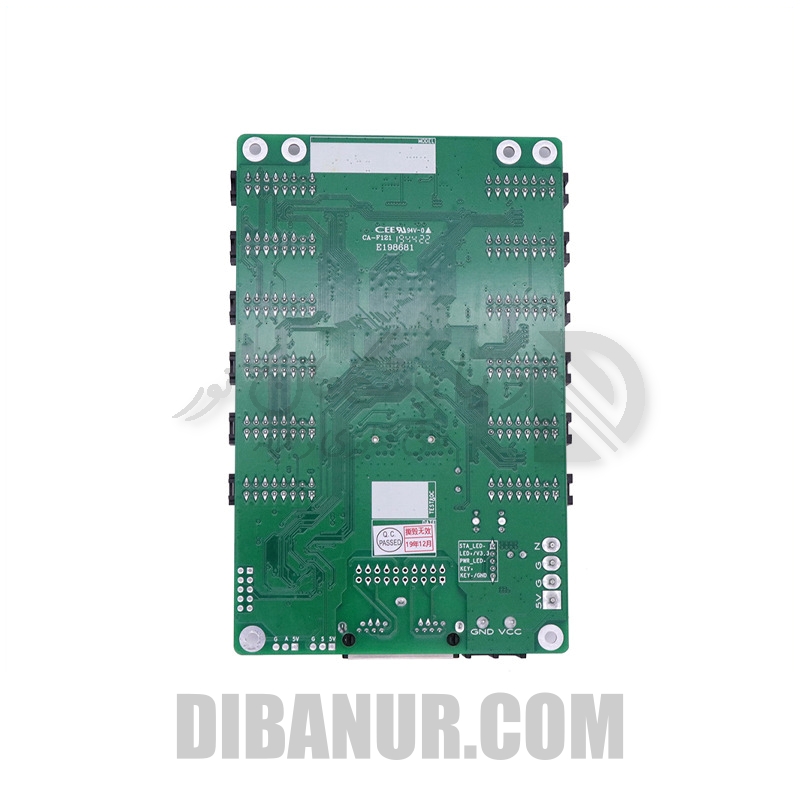

معرفی کارت ریسیور نمایشگر Novastar MRV336
کارت دریافت NovaStar MRV336 با 12 خروجی HUB75E، 16 گروه داده RGB و ظرفیت بارگزاری 256×226 پیکسل طراحی شده است.
مشخصات فنی
| مشخصه | مقدار |
|---|
| برند و مدل | NovaStar MRV336 |
| نوع محصول | Receiving Card |
| ظرفیت بارگزاری | 256×256 pixels |
| خروجیهای ماژول | 12× HUB75E |
| گروه داده RGB | 16 groups |
| کالیبراسیون پیکسلی | Brightness and chroma |
| تصویر از پیش ذخیرهشده | Supported |
| خواندن فایل RCFGX | Supported |
| پایش کارت | Temperature and voltage |
| پایش خطای شبکه | Custom bit error detection |
| ولتاژ ورودی | DC 3.3V–5.5V |
| توان مصرفی | 2.5W |
| دمای کاری | -20°C to +70°C |
| نرمافزار | NovaLCT |
تعریف پین کانکتور نشانگر (J9)
| 1 | 2 | 3 | 4 | 5 |
|---|
| STA_LED | LED +/3.3V | PWR_LED- | KEY+ | KEY-/GND |
وضعیت نشانگرها
| نشانگر | رنگ | وضعیت | توضیحات |
|---|
| Running indicator | Green | Flashing once every 1s | The receiving card is functioning normally. Ethernet cable connection is normal, and video source input is available. |
| | Flashing once every 3s | Ethernet cable connection is abnormal. |
| | Flashing 3 times every 0.5s | Ethernet cable connection is normal, but no video source input is available. |
| | Flashing once every 0.2s | The receiving card failed to load the program in the application area and is now using the backup program. |
| | Flashing 8 times every 0.5s | A redundancy switchover occurred on the Ethernet port and the loop backup has taken effect. |
| Power indicator | Red | Always on | The power supply is normal. |
تعریف پینها
| R | 1 | 2 | G | |
|---|
| / | B | 3 | 4 | GND | Ground |
| / | R | 5 | 6 | G | / |
| / | B | 7 | 8 | E | Line decoding signal |
| Line decoding signal | A | 9 | 10 | B | |
| C | 11 | 12 | D | |
| Shift clock | DCLK | 13 | 14 | LAT | Latch signal |
| Display enable signal | OE | 15 | 16 | GND | Ground |
مشخصات الکتریکی و فیزیکی
| مشخصه | جزئیات | مقدار |
|---|
| Maximum Loading Capacity | | 256 × 226 pixels |
| Electrical Specifications | Input voltage | DC 3.3 V to 5.5 V |
| Rated current | 0.5 A |
| Rated power consumption | 2.5 W |
| Operating Environment | Temperature | –20°C to +70°C |
| Humidity | 10% RH to 90% RH, non-condensing |
| Storage Environment | Temperature | –25°C to +125°C |
| Humidity | 0% RH to 95% RH, non-condensing |
| Physical Specifications | Dimensions | 145.6 mm × 95.3 mm × 18.4 mm |
| Packing Information | Packing specifications | An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 100 receiving cards. |
| Packing box dimensions | 650.0 mm × 500.0 mm × 200.0 mm |
| Certifications | | RoHS, EMC Class B |
