- 8bit
- 8bit color depth video source input and output, monochrome grayscale is 256, can be matched with 16777216 kinds of mixed colors.
- Frame rate
- Adaptive frame rate technology, not only supports 23.98/24/29.97/30/50/59.94/ 60Hz regular and non-integer frame rates, but also outputs and displays 120/240Hz high frame rate pictures, which greatly improves picture fluency and reduces drag film. (*it will affect the load).
- Color temperature adjustment
- Color temperature adjustment, that is, saturation adjustment, to enhance the expressiveness of the picture.
- Better gray at low brightness
- By optimizing the gamma meter algorithm, the display screen can maintain the integrity and perfect display of gray scale when reducing the brightness, showing the display effect of low brightness and high gray scale.
- Calibration
- 8bit precision brightness and chromaticity correction point by point, which can effectively eliminate the chromatic aberration of the lamp point, ensure the uniformity and consistency of the color brightness of the entire screen, and improve the overall display effect.
- Cabinet highlight
- Using the control software, you can quickly mark the selected target cabinet, display a flashing box on the front of the cabinet, and change the flashing frequency of the cabinet indicator at the same time, which is convenient for front and rear maintenance.
- Quick OSD
- Using the control software, you can quickly mark the actual hardware connection serial number of the receiving card corresponding to the Ethernet port, which is convenient for setting the connection relationship of the screen.
- Image rotation
- Single cabinet image to be rotated at 9071807270° angles, and with part of the main control, the single cabinet image can be rotated and displayed at any angle.
- Data group offset
- Screen offset in units of data groups, suitable for simple special-shaped screens
- Bit error detection
- It supports the detection of data transmission quality and error code between receiving cards, and can easily and quickly identify the cabinet with abnormal hardware connection, which is convenient for maintenance.
- Loop redundancy
- The redundant Ethernet port is used to increase the connection with the transmitting equipment and increase the reliability of cascading between equipment. When one circuit fails, it can realize seamless switching to the other circuit and ensure the normal display of the screen.
- Firmware redundancy
- It supports firmware program backup and can be upgraded safely. There is noneed to worry about the loss of firmware program due to cable disconnectionor power interruption during the upgrade process.
- Control Area
- Normal chips: 128X1024pixels, PWM chips: 192X1024 pixels, Shixin chips: 162X1024 pixels.
- Ethernet Port Exchange
- Supported, arbitrary use.
- Chip Support
- Normal chips, PWM chips, Shixin chips.
- Scan Type
- Up to 1/128 scan.
- Module Specifications Supported
- Module of any row and column within 13312pixels.
- Cable Direction
- Route from left to right, from right to left, from top to bottom, from bottom to top.
- Data Group
- 24 groups of parallel RGB full color data and 32 groups of serial RGB data, which can be expanded to 128 groups of serial data, data groups can be exchanged freely.
- Data Folded
- Normal chips: 2〜8 fold horizontally, 2〜4 fold vertically. PWM and Shixin chips: horizontal or vertical 2〜8 fold.
- Module pumping point, row and column
- Any pumping point and any pumping row and any pumping column.
- Bit Error Monitoring
- Monitor the total number of data packets and error packets to check network quality.
- Brightness Calibration
- 8bit
- Chromaticity Calibration
- 8bit
- Redundancy
- Loop redundancy and firmware redundancy.
- Optional functions
- Shaped screen.

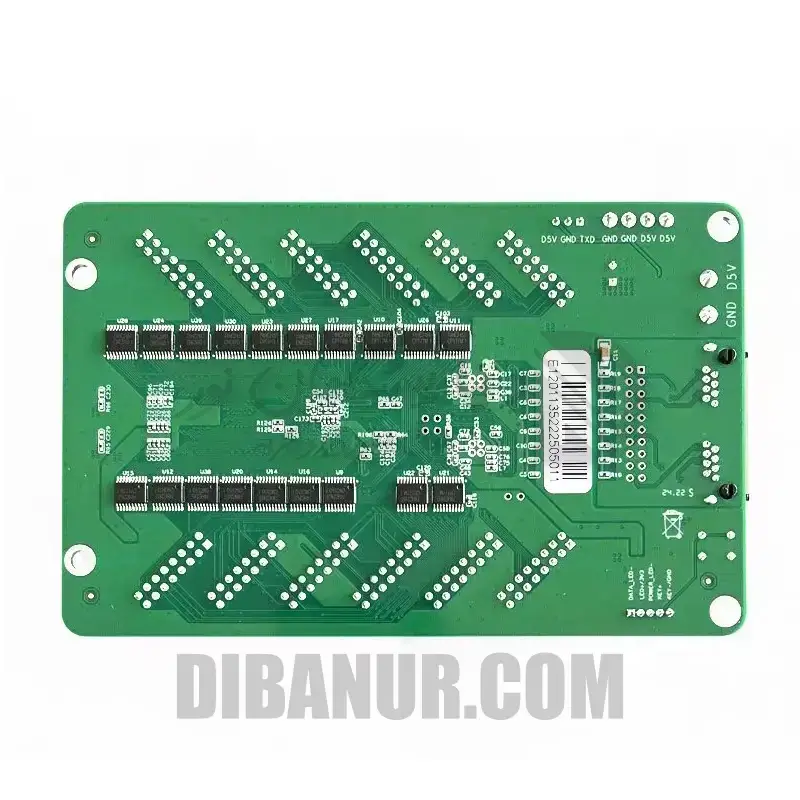

- S/N
- 1
- Name
- Power 1
- Function
- Connect to DC 3.8V-5.5V power supply for the receiving card, only use one of them.
- 2
- 3
- Power 2
- Network port A
- 4
- 5
- Network port B
- Test button
- 6
- Signal indicator D2
- Power indicator light DI
- Flashes once per second
- Red indicator light shows that the power supply is normal.
- Receiving card: normal working, Ethernet cable connection: normal.
- Flashes 10 times per second
- Flashes 4 times per second
- Receiving card: normal working, Cabinet: Highlight.
- Receiving card: back up sender cards (Loop redundancy status).
- 7
- 8
- External interface
- HUB pins
- For indicator light and test button.

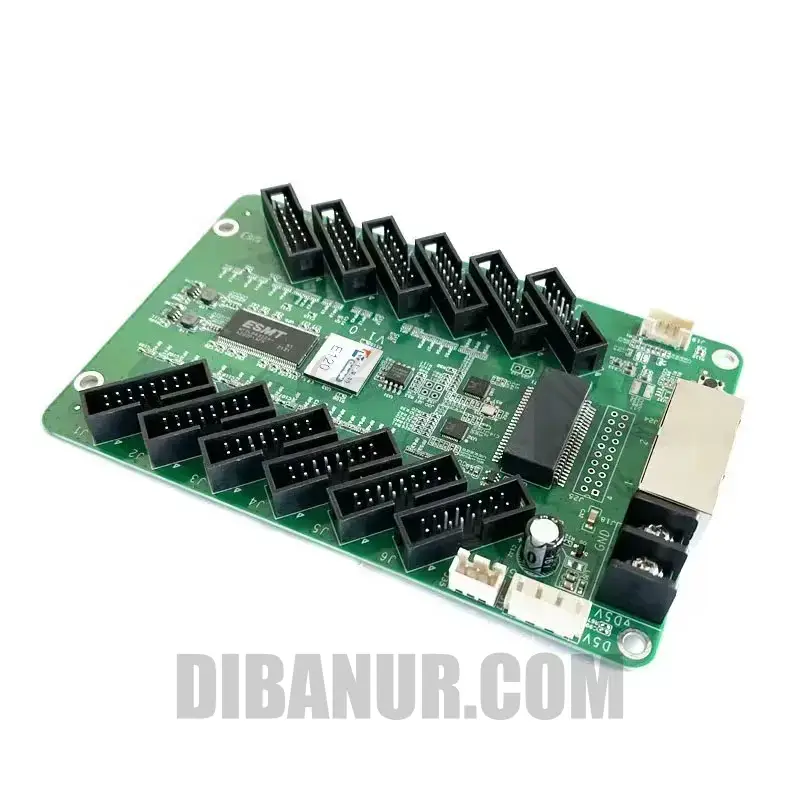

- HUB75 Interface, J1-J12 connected to display modules.
- Hardware interface
- HUB75 interfaces
- Ethernet port transmission rate
- 1Gb/s
- CommunicationDistance
- Recommended: CAT5e cable<100m
- Compatible withTransmission Equipment
- Gigabit switch, Gigabit fiber converter, Gigabit fiber switch
- Size
- LXWXH/ 145.2mm(5.72") X 91.7mm(3.61") X 18.4mm(0.72")
- Weight
- 95g/0.21lbs
- Voltage
- DC3.8〜5.5V,0.6A
- Rated power
- 3.0W
- Body Static Resistance
- 2KV
- Temperature
- -25°C〜75°C (-13°F~167°F)
- Humidity
- 0%RH-80%RH, no condensation
- Temperature
- -40°C〜125°C (-40°F~257°F)
- Humidity
- 0%RH-90%RH, no condensation
- Packaging rules
- Standard blister card tray device, 100 cards per carton
- Package size
- WXHXD/603.0mm(23.74")X501.0mm(7.48") X 190.0mm(19.72")
- Data signal
- Scanning signal | Control signal
- GD1
- GND | GD2 | E | B | D | LAT | GND
- 2
- 4 | 6 | 8 | 10 | 12 | 14 | 16
- 1
- 3 | 5 | 7 | 9 | 11 | 13 | 15
- RD1
- BD1 | RD2 | BD2 | A | C | CLK | OE
- Data signal
- Scanning signal | Control signal
